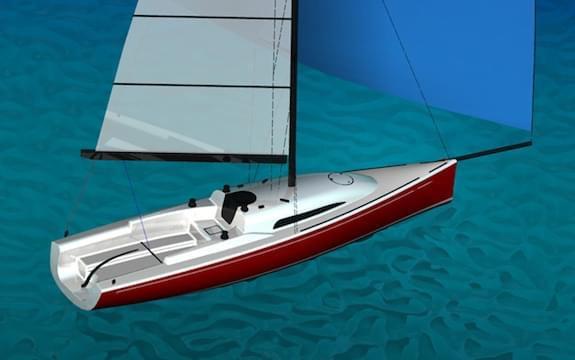

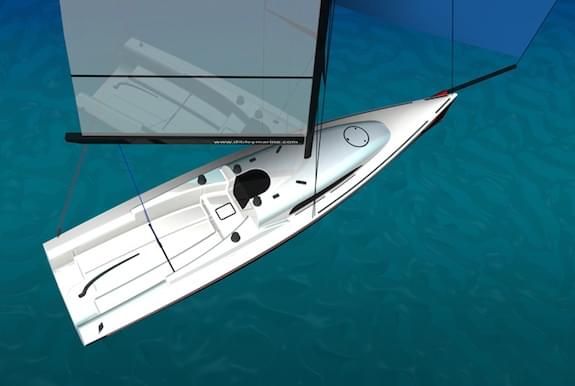

33' Racing Yacht
Boat Name: On the Drawing Board

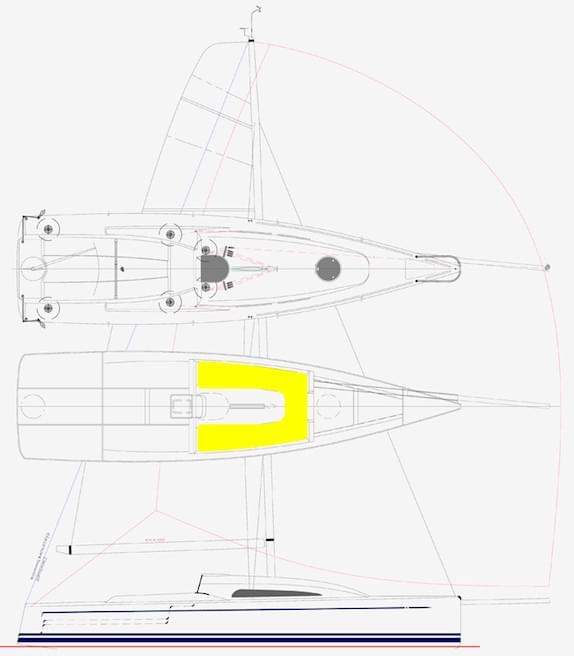

The
hull form utilizes a
narrow beam waterline
with slightly hollow waterlines forward, with our usual
u-shaped sections fairing into a flat run aft. The
combination is carefully considered to ensure a
well-balanced hull form
that will
perform beautifully
upwind and down.
A
large sail area is made possible by the countered keel/bulb
configuration and will ensure exciting rides on the wind
and off. The keel is fixed but can be removed from the
yacht easily for shipping purposes. A lift keel version is
being considered.
The
Chris Mitchell
designed rig is a high-powered fractional carbon spar with
swept spreaders. The mast is designed to spit into two
pieces so that they can also be shipped within the
40-foot container.
A 2-meter protruding prod is incorporated into the bow so
that when not in use, it is pulled back into the yacht from
the confines of the cockpit. The prod caters for a large
masthead and fractional asymmetrical spinnaker.
Structural Engineering is being done by
High Modulus
(NZ) and will incorporate Carbon, E-glass and a cored hull
and deck.
In summary, this yacht will perform to the highest levels
in mixed fleets and will supply ultimate thrills to anyone
that sails her.
SPECIFICATIONS
AND PRINCIPAL DIMENSIONS
LOA 10.000 m 32’ - 10”
LWL 9.494 m 31’ - 2”
Overall Beam 2.500 m 8’ - 2”
Draft 2.300 m 7’ - 6”
Displacement (1/2 load) 2,600 kg’s 5,730 lbs
J 4.064 m 13’ - 4”
I 10.792 m 35’ - 5”
P 11.200 m 36’ - 9”
E 4.397 m 14’ - 5”
Disp/Length 85.6
SA/disp 31.90
Contact Dibley Marine for more information
