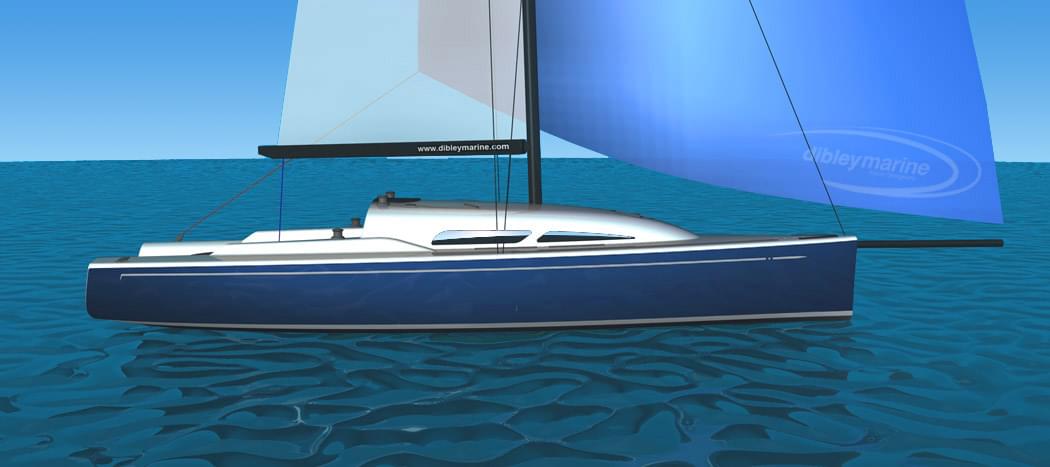

33' Cruising Yacht
Boat Name: On the Drawing Board
Using the same hull form, the draft has been reduced, the
sail area reduced, though using the same rig configuration.

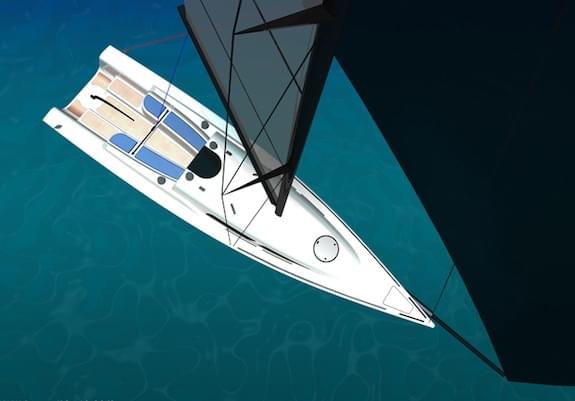

And the cabin is longer and cockpit seating utilised.

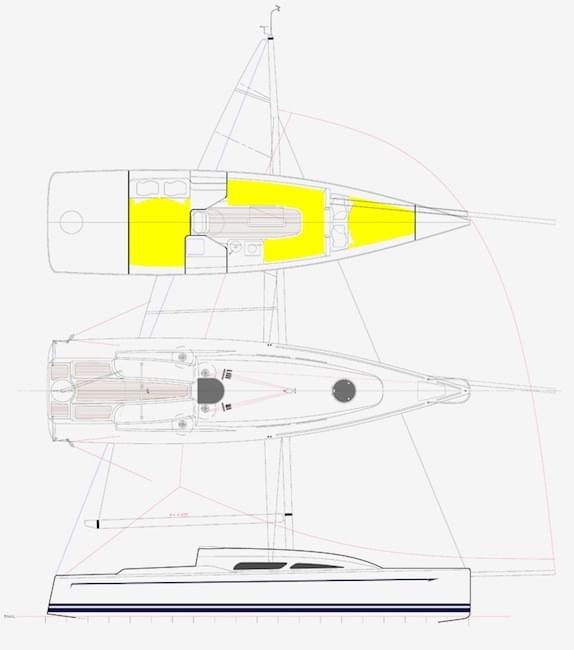

Accommodation features an aft-enclosed cabin counter acting
the forward double V-berth. An enclosed head to starboard;
and a saloon / galley area in the middle complete the
accommodation.
The mast is designed to spit into two pieces so that they
can also be shipped within the
40-foot container.

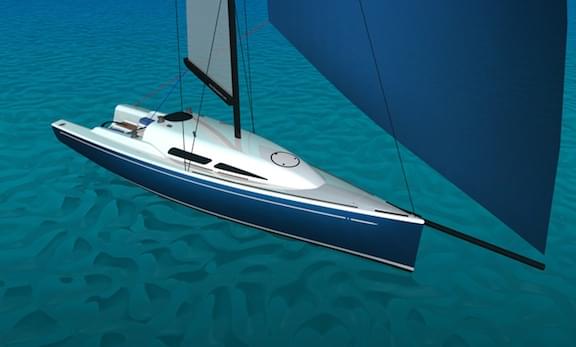

A 2-meter protruding prod is incorporated into the bow so
that when not in use, it is pulled back into the yacht from
the confines of the cockpit. The prod caters for a large
masthead and fractional asymmetrical spinnaker.
Structural Engineering is being done by
High Modulus
(NZ) and will incorporate Carbon, E-glass and a cored hull
and deck very similar to the Racing version.
In summary, this yacht will perform well in the local club
races, but will also supply comfort and relaxation when in
port, or cruising the coast.
SPECIFICATIONS
AND PRINCIPAL DIMENSIONS
LOA 10.000 m 32’ - 10”
LWL 9.494 m 31’ - 2”
Overall Beam 2.500 m 8’ - 2”
Draft 2.100 m 6’ - 11”
Displacement (1/2 load) 2,700 kg’s 5,950 lbs
J 4.064 m 13’ - 4”
I 10.792 m 35’ - 5”
P 11.200 m 36’ - 9”
E 4.397 m 14’ - 5”
Disp/Length 89
SA/disp 27
Contact Dibley Marine for more information
