Rhib 30 Inflatable Dibley Marine

Sagittarius S900 30' Sports Inflatable

Client: Sagittarius

Sagittarius Sporting Company's Marine Division commissioned a sea kindly hull form that would handle the most adverse conditions under speed, combined with an aesthetic look that separated the design from other manufacturers and models.


s900 rhib motorboat dibley marine

It must also fit within a 40-foot container with the bags deflated. Working alongside client representative Paul Goddard, the result is a hull that has a moderately deep-V bottom incorporating wide chine flats and a low beam length ratio.

s900 rhib motorboat dibley marine

The inflatable is D-shaped as opposed to the traditional tube shape which maximises internal space. Various internal and cockpit layouts are available including a console version and a cabin version with a small interior layout. Further models are on the design table.


s900 rhib motorboat dibley marine

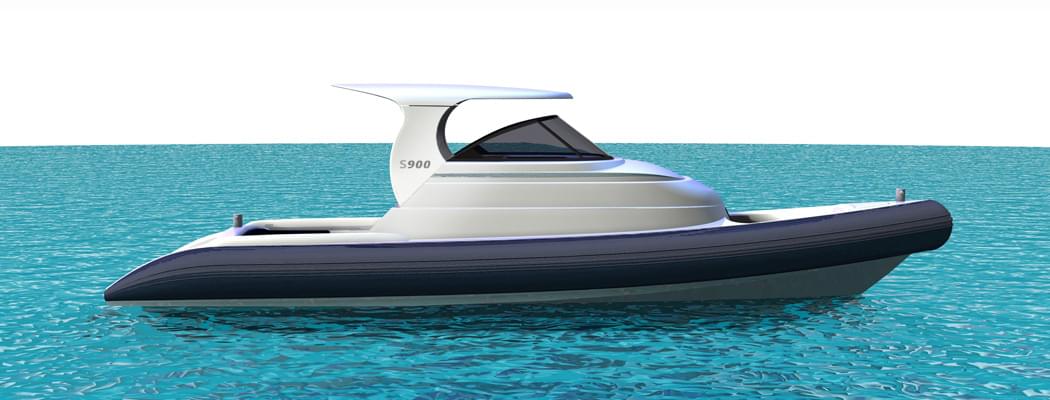

Renderings of 9m inflatable rhib.


SPECIFICATIONS AND PRINCIPAL DIMENSIONS

L.O.A. 9.00 m 29 - 6"
Beam max. [inflated] 2.700 m 8' - 10"
Beam [deflated] 2.260 m 7' - 5"
Draft. 0.410 m 1' - 4"
Displacement [1/2 load] 2,250 kg's 4,960 lb's
Power. 2 x 300 HP
Max Speed 55 knots
Cruising Speed 30 knots
