Dibley 35' Picnic Boat

The Brief for Dibley Design was for a simple, traditional looking 35' powerboat that has modern performance and comfortable accommodation.


The hull has a moderately deep-V bottom incorporating wide chine flats and a low beam length ratio.
The GH 35 has been designed to perform at a comfortable 25 knots. Jet units allow owners to get into areas that are usually unattainable to standard propped vessels and various internal and cockpit layouts are available.

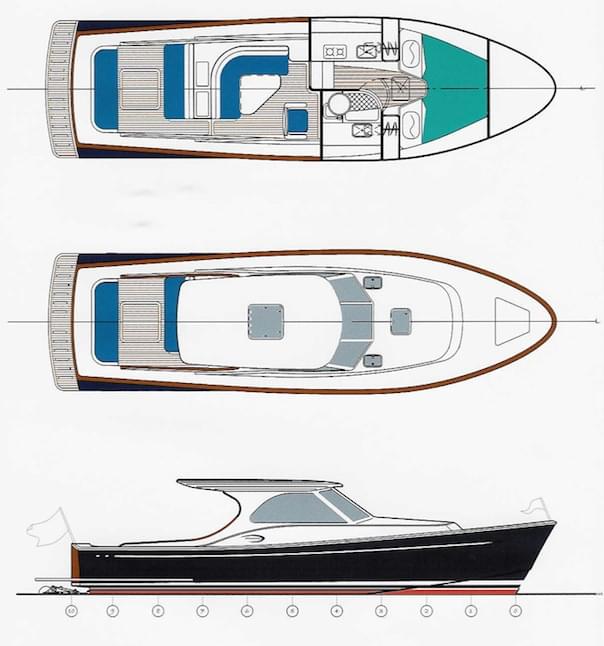

Various layouts are available with the models shown having V-berths for two up forward with the cockpit saloon table dropping to form a further double berth. Clears are located aft of the upper saloon seating when in adverse weather and an entertaining / BarBQ area is located at the stern with optional seating layouts aft. A boarding platform aft can be used for easy dinghy access.


Length of Hull 10.67 metres ( 35’ - 0”)
Beam 3.194 metres (10’ - 6”)
Draft (jet) 0.49 metres (1’ - 7”)
Displacement 4,600 kg’s (10,140 lb’s)
Power (options) 1 x 315 HP Jet Drive
Speed (max) 35 knots
Speed (cruising) 25 knots
