Dibley 25 Picnic Boat Dibley Marine

Dibley 25' Picnic Boat


The P25 was commissioned by a South Island New Zealander who wanted to take his family out on the multiple number of lakes that are dotted around this part of New Zealand.

The design brief was for a
classic 1920’s look, with a fuel efficient hull form and good form stability. A small amount of tumblehome aft softens the curved transom, and the bounce of the sheer line takes us back to that golden age of runabouts.

A
cuddy cabin or bimini arrangement can be utilised for cover, and with a bit of tweaking, a small cuddy cabin with berth and head can be designed into the forepeak.

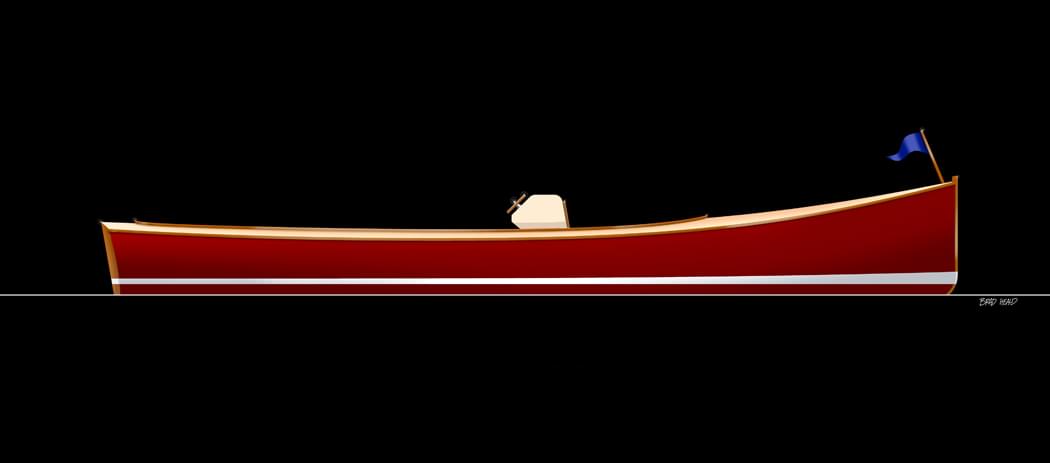

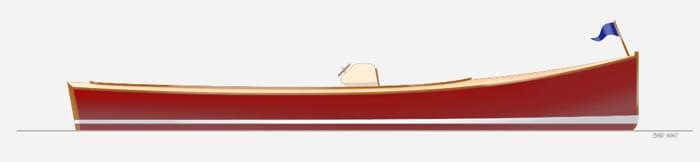

P25 Picnic Boat Dibley Marine 2012

SPECIFICATIONS AND PRINCIPAL DIMENSIONS

Length of Hull 7.65 metres (25’ - 0”)
Beam 1.92 metres (6’ - 3”)
Draft (max) 0.48 metres (1’ - 7”)
Displacement 980 kg’s (2,155 lb’s)
Power (options) 1 x 20 HP Shaft Drive












16/09/2017
