Superyacht Tender 7m Dibley Marine

Super Yacht Tender, 7m

Client: Mitchells Marine Ltd.

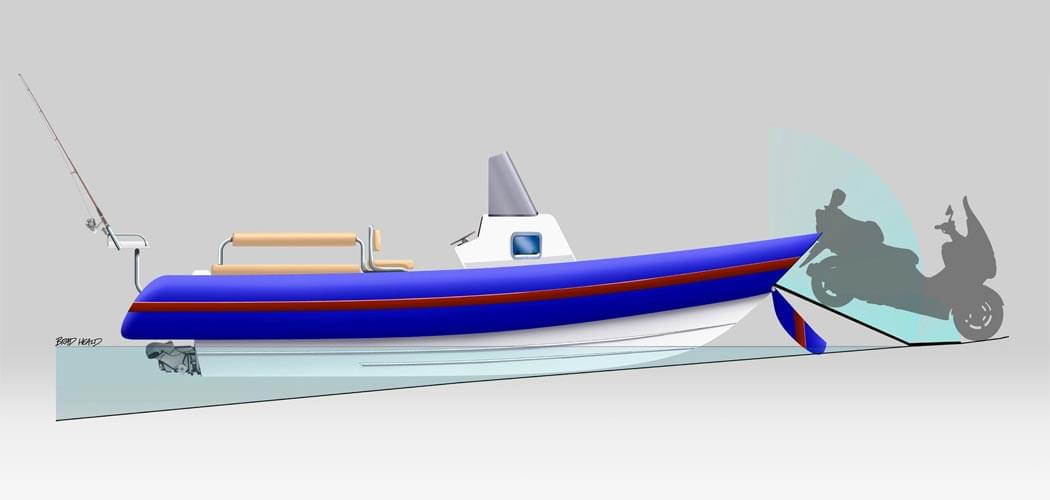

Dibley Marine are working alongside Auckland based company, Mitchells Marine on the design of a 7-metre Super Yacht Tender with a few special features that were essential to the client we have. The external beam was fixed due to deck space but the internal beam needed to be as wide as possible for internal seating and volume. A manual bow door system also had to be implemented to allow passengers and equipment, such as Scooters, to be offloaded on beaches effortlessly.

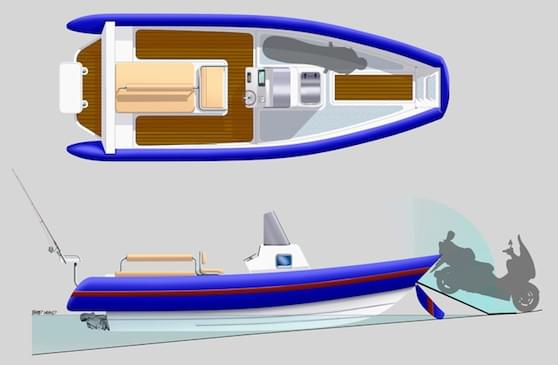

Mitchells SY Tender 2b

The pontoon system is being worked on in-house through Mitchells Marines R&D division and uses a foam and rubber matrix that can be shaped in any way that the design dictates. The deep-v hull form with a Hamilton Jet system will handle most sea states with ease, and at speed.

SPECIFICATIONS AND PRINCIPAL DIMENSIONS

(LOH) Length of Hull                   7.50 metres              ( 24’ - 7”)
Beam                                           2.90 metres             (14’ - 9”)
Draft (max)                                  0.37 metres              (1’ -  3”)
Displacement  (Lightship)            2,000 kg’s                (4,410 lb’s)
Power (options)                           Yanmar 6LPA-SPT2  315 HP Diesel / HJ274 Hamilton Jet
Speed (max)                                30 knots
Speed (cruising)                          25 knots



04/04/2017
